WF-9560-AD Power Center: 60 AMPS OF OUTPUT CURRENT

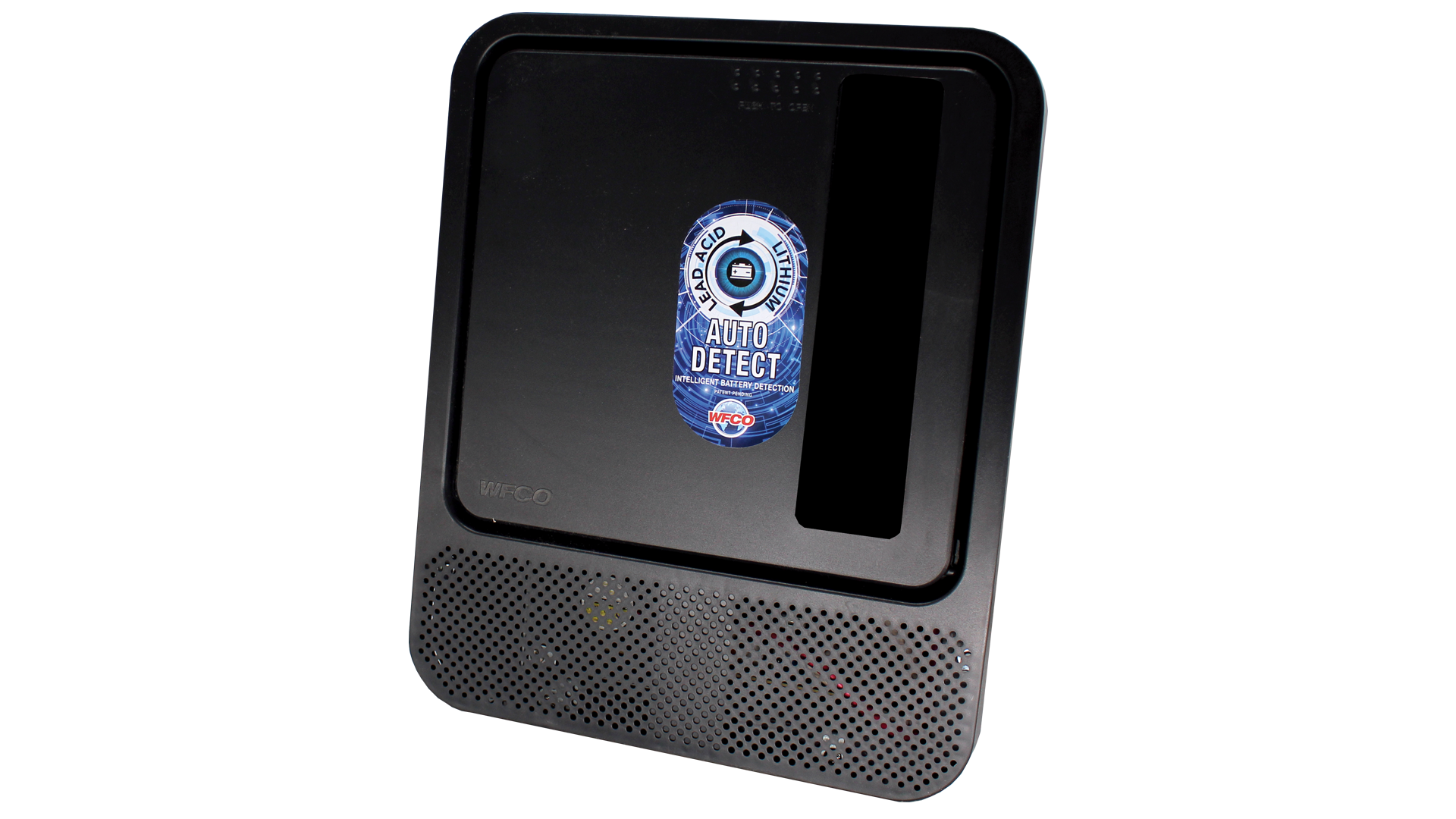

As lithium-ion batteries increase in popularity, WFCO knows that our customers want flexibility. The WF-9560-AD Power Center includes the industry exclusive, Patent Pending Auto-Detect technology. This microprocessor-driven technology will recognize lithium-ion and lead-acid battery chemistries and automatically adjust the charging profile to match the battery type.

No more buttons. No more switches. An accurately charged battery gives RV owners peace of mind. Eliminating the risk of over and under-charging the WF-9560-AD Power Center will maximize your battery life with multi-stage charging and current monitoring in both lead-acid and lithium-ion profiles.

To learn more about Auto-Detect, click Auto-Detect Video.

To learn more about our products through video, click here. For any WFCO resources, tools, and information on our products, email support@wfcoelectronics.com with your request, or click here to download the WFCO Product Catalog.

Additional Information

Converter Type

Power Center

Input Voltage/Hz

105-130 VAC, 60 Hz

Output Power

820W

Charging Modes

3-stage Intelligent Charge (VRLA/AGM)

Intelligent Charging Stages

Absorption, Bulk, Storage (VRLA/AGM)

Battery Adaptability

AGM, Lead Acid

Voltage Output

Lead Acid – 13.2 – 14.4V DC Range, Lithium-Ion – 13.2 – 14.6 VDC, 13.6 – 14.6 VDC

Bulk Charge Voltage (4 Hrs.)

14.4 V

Absorption Charge Voltage

13.6V

Float Mode (Trickle Charge Voltage)

13.2V DC (trickle charge voltage)

Cooling System

2-Fans Zero Clearance

Efficiency (full load)

>80%

Overload Protection

Auto recovery on normal load, Current limiting & shutdown

Short Circuit Protection

Auto recovery on normal load

Over Temperature Protection

Auto recovery on normal load

Reverse Polarity Protection

Fuse Protected, Replaceable by fuse of same rating

Protection Features

Over Temperature, Overload, Reverse Polarity (fuse), Short Circuit

AC Main Breaker

50 A

AC Circuits (twin breakers)

Two- 50A Mains with up to 12 AC Branch Circuits

Built-in Strain Relief

Yes

DC Circuits (Quantity)

17 (3 30A Max & 14 20A Max)

Case Color

Black

Case Material

Plastic

Certifications

FCC Class B compliant, UL

Input Current

12A

Input Power

1030W

Dimensions

11.96 W x 15.04 H x 10.04 D inch / 304 W x 382 H x 255 D mm

Weight

7.93 lbs.

Warranty Period

Two Year Limited Product Warranty

DC Current

60A
