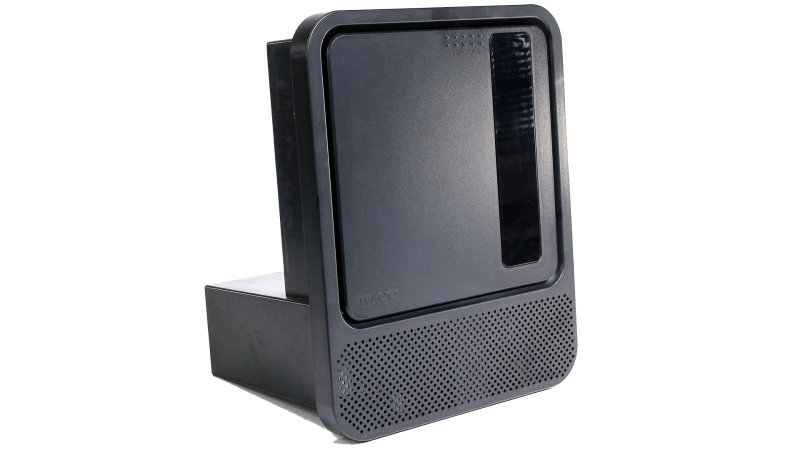

WF-9560LiS Power Center *

WF-9560LiS Power Center *

As Lithium-Ion Batteries increase in popularity, WFCO knows that our customers want flexibility. The WF-9560LiS Power Center with lithium switch
provides the most DC  circuits in the market (17) to allow for the growing number of DC devices needed in today’s large and luxury,
feature-packed motor homes and fifth wheels.

The lithium switch allows customers the versatility to change charging modes between lead-acid and lithium batteries by simply sliding a switch. Easy to use, the WF-9560LiS provides a convenient, long-term option that eliminates the hassle of swapping out a whole unit.

The only choice of four DC circuit connection modes – Quick Connect Terminals, Screw Terminals, Wire Pigtails, or WAGO Connectors – allows installers to select their preferred wiring connection for speed and ease of installation. The WF-9560LiS Power Center features a zero-clearance front ventilation system, so there is no wasted space around the unit.

Every WF-9560LiS Power Center complies with FCC Class B, which means that the converters do not cause interference with televisions, radios, or other signals. The WF-9560LiS Power Center also brings you the convenience of built-in AC and DC distribution. Install two 50 amp main AC breakers and up to twelve AC branch circuits when using duplex breakers. Seventeen DC branch circuits, including three 30 amp and fourteen 20 amp, have LED lights illuminating to indicate open circuits.

To learn more about our products through video, click here. For any WFCO resources, tools, and information on our products, email support@wfcoelectronics.com with your request, or click here to download the WFCO Product Catalog.

Additional Information

Converter Type

Power Center

Input Voltage/Hz

105-130 VAC, 60 Hz

Output Power

820W

Charging Modes

2-Stage Intelligent Charge, 3-stage Intelligent Charge (VRLA/AGM)

Intelligent Charging Stages

Absorption, Bulk, Storage (VRLA/AGM)

Battery Adaptability

AGM, Lead Acid, Lithium-Ion

Voltage Output

13.2 – 14.6 VDC, 13.6 – 14.6 VDC

Absorption Charge Voltage

13.6V

Bulk Charge Voltage (4 Hrs.)

14.6V

Float Mode (Trickle Charge Voltage)

13.2V DC (trickle charge voltage)

Cooling System

2-Fans Zero Clearance

Efficiency (full load)

>85%

Overload Protection

Auto recovery on normal load, Current limiting & shutdown

Short Circuit Protection

Auto recovery on normal load

Over Temperature Protection

Auto recovery on normal load

Reverse Polarity Protection

Fuse Protected, Replaceable by fuse of same rating

Protection Features

Over Temperature, Overload, Reverse Polarity (fuse), Short Circuit

AC Main Breaker

50 A

AC Circuits (twin breakers)

Two- 50A Mains with up to 12 AC Branch Circuits

Built-in Strain Relief

Yes

DC Circuits (Quantity)

17 (3 30A Max & 14 20A Max)

Case Color

Black

Case Material

Plastic

Certifications

FCC Class B compliant, UL

Input Current

12A

Input Power

1030W

Dimensions

11.85" W x 14.57" H x 9.72" D

Weight

7.93 lbs.

Warranty Period

Two Year Limited Product Warranty
