WF-8950L2-REP Lithium Converter Replacement Kit *

WF-8950L2-REP Lithium Converter Replacement Kit *

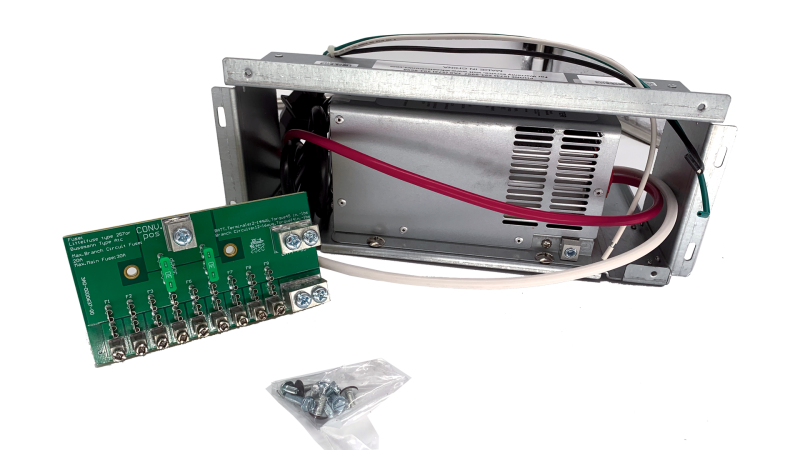

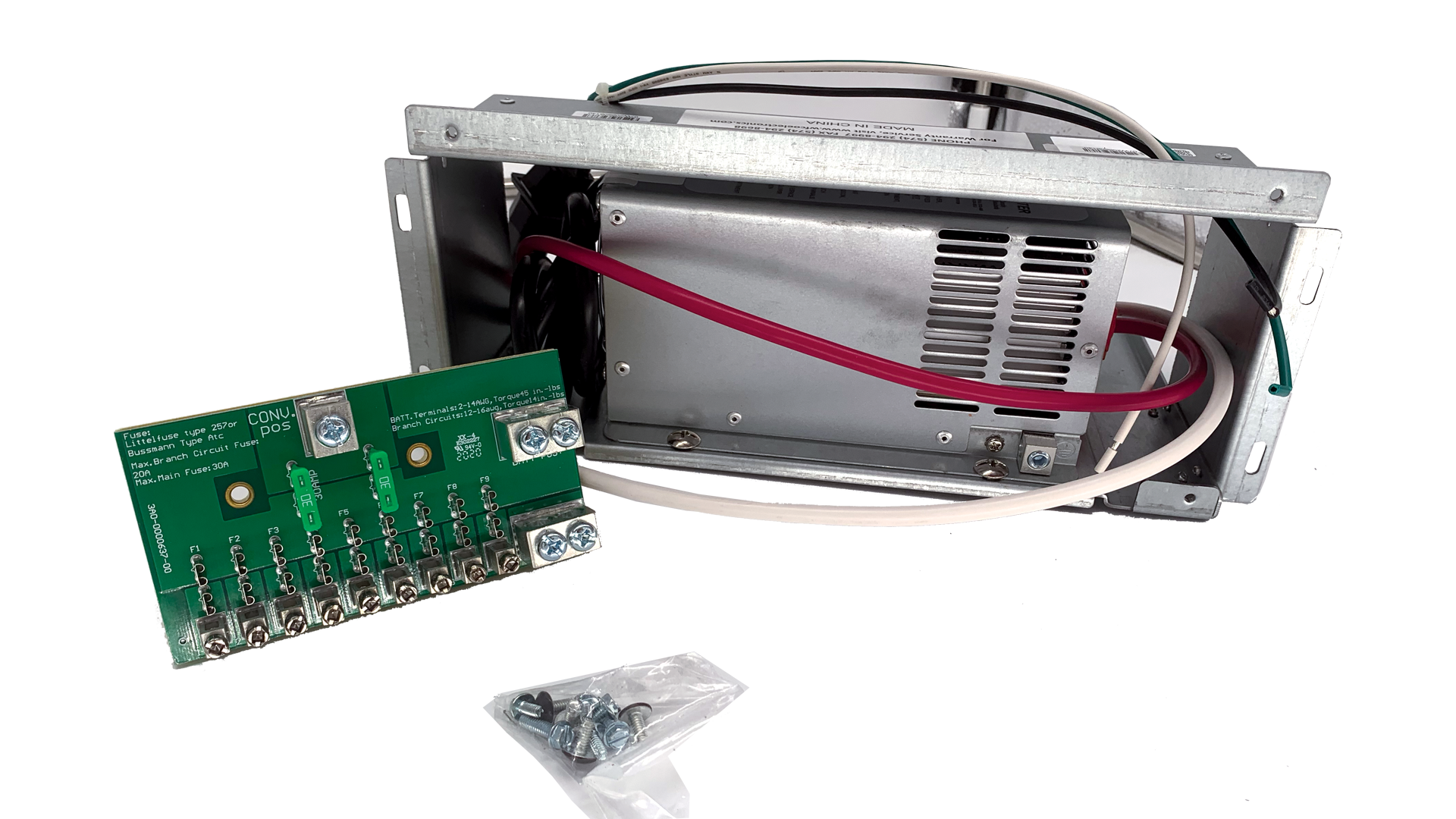

Our WF-8950L2-REP Lithium Converter Replacement Kit allows easy upgrade of existing power centers. Technicians can easily remove the lower section of certain power center brands and slide in the WF-8950L2-REP Lithium Converter Replacement Kit. This exchange upgrades the old single-stage charger to a high-performance three-stage charging powerhouse. WFCO’s complete replacement kit includes the converter, a new DC fuse board, and required fasteners to make installation easy.

The WFCO WF-8950L2-REP Lithium Converter Replacement Kit is optimized to safely charge deep-cycle lithium iron phosphate batteries while powering the RV’s lights and appliances. The multi-stage process ensures a safe operating voltage for all loads, replaces energy in the lithium-ion battery, and assures the lithium cells inside the batteries remain balanced.

To learn more about our products through video, click here. For any WFCO resources, tools, and information on our products, email with your request, or click here to download the WFCO Product Catalog.

Additional Information

Output Power

940 W

Input Voltage/Hz

105-130 VAC, 60 Hz

Converter Type

Two Stage Converter Charger

Voltage Output

13.6 – 14.6 VDC

Output Current

50 A

Absorption Mode (Nominal Voltage)

13.6V DC (nominal voltage)

Bulk Mode (Quick Charging Voltage)

14.6 VDC

Over Current


Over Temperature


Over Voltage


Reverse Polarity


Short Circuit


Cooling System



12˝ wide; 4.75˝ high; 7.65˝ deep Kit size (with converter mounted in bracket)


10.25 lbs
