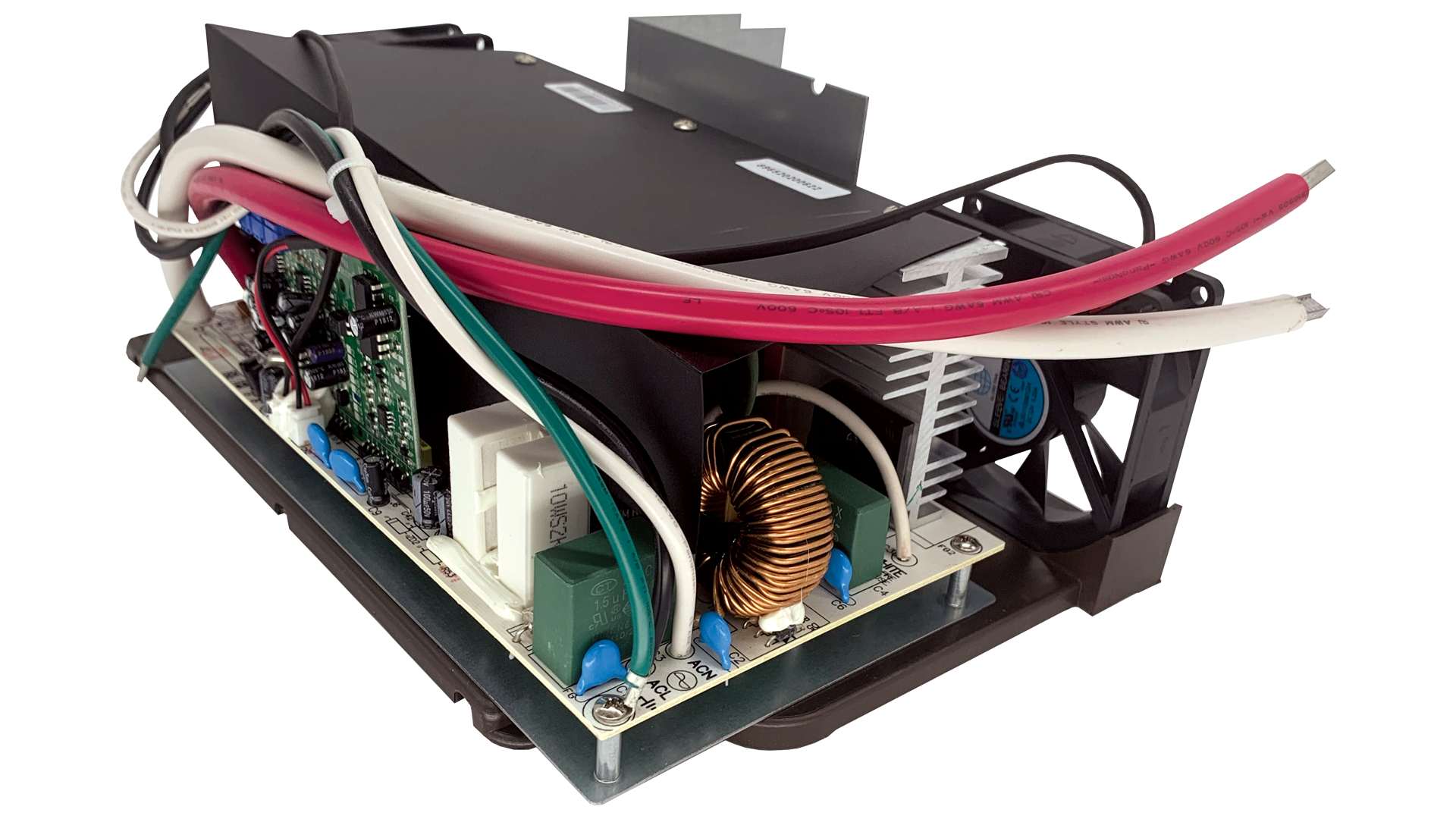

WF-8965-MBA Main Board Assembly

WF-8965-MBA Main Board Assembly

Our WF-8965-MBA Main Board Assembly is a quick, easy replacement part for all power centers. It installs easily with only two screws, three ac, and two DC wires. With no need to re-wire, installation is only 10 minutes! No additional wiring or hookup is required, and it accepts hi-pot testing. Customers also have the option for Reverse Polarity Detection that meets new RVIA & NEC requirements with audible alarm notification.

WF-8965-AD-MBA Main Board Assembly replaces the lower power converter section on any WF-8965 Series. It easily installs with only two screws, three AC wires, and two DC wires.

To learn more about our products through video, click here. For any WFCO resources, tools, and information on our products, email with your request, or click here to download the WFCO Product Catalog.

Additional Information

Output Power

1260 W

Input Voltage/Hz

105-130 VAC, 60 Hz


8 Lbs.


7 1/16" W x 3 7/8" H x 9 1/2" D

Output Current

65 A

Converter Type

Three-Stage Converter Charger

Voltage Output

13.2 – 14.4V DC Range

Bulk Mode (Quick Charging Voltage)

14.4V DC (quick charging voltage)

Absorption Mode (Nominal Voltage)

13.6V DC (nominal voltage)

Float Mode (Trickle Charge Voltage)

13.2V DC (trickle charge voltage)

Over Current


Over Temperature


Over Voltage


Reverse Polarity


Cooling System


Mounting Plate Material


Mounting Plate Color

Black, Brown
