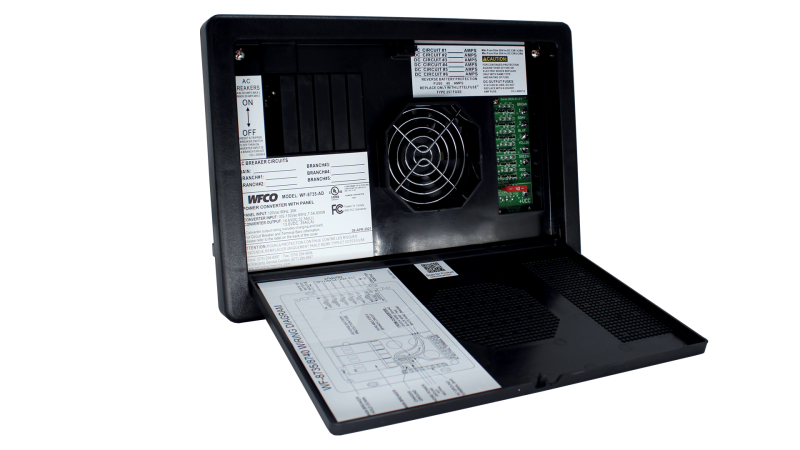

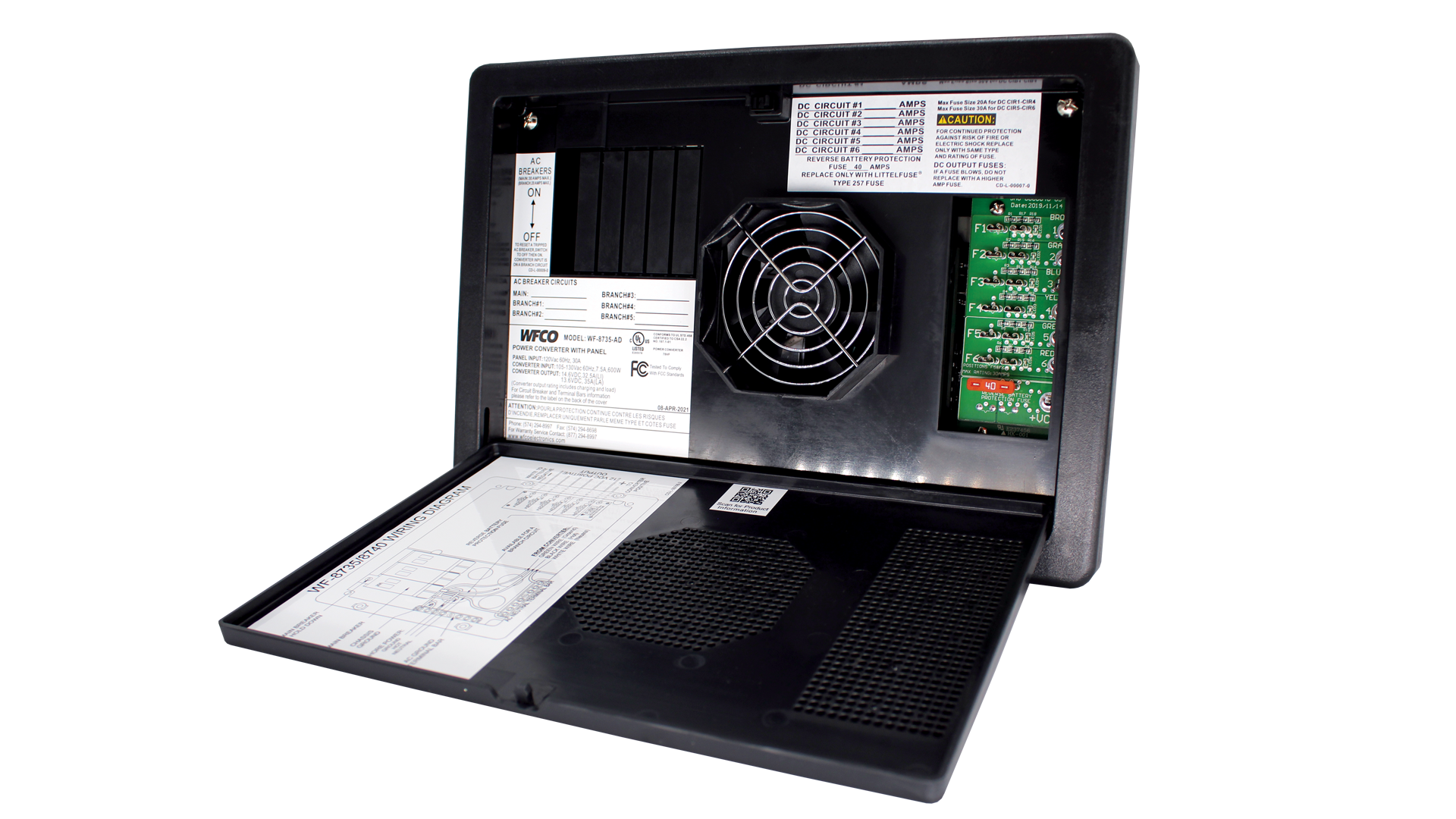

WF-8712 Power Center

WF-8712 Power Center

WF-8712 Power Center converters provide 12 Amp DC output and a highly reliable nominal 13.6 VDC with or without a battery. No extra filtering is required.

WFCO’s three-stage battery charging results in longer battery life and is automatic. Short-circuit and reverse polarity protection provide further reliability and peace of mind. Nominal voltage output modes are a 13.2 VDC range “float” mode, a 13.6 VDC range “absorption” charge mode, and a 14.4 VDC range “bulk” charge mode.

Every model is designed to comply with FCC Class B, which means that the converters do not cause interference with televisions, radios, or other signals. The WF-8712 Power Center also brings you the convenience of built-in AC and DC distribution, 30 Amp main AC breakers, and up to three 20 Amp branch AC circuits that can be installed. DC circuits include LED lights that illuminate to indicate open circuits.

Part Numbers: WF-8712-P (Brown), WF-8712-PB (Black)

For a lithium-ready solution, click here.

To learn more about our products through video, click here. For any WFCO resources, tools, and information on our products, email with your request, or click here to download the WFCO Product Catalog.

Additional Information

Output Power

210 W

Input Voltage/Hz

105-130 VAC, 60 Hz

Converter Type

Three-Stage Converter Charger

Output Current

12 A

Voltage Output

13.2 – 14.4V DC Range

Bulk Mode (Quick Charging Voltage)

14.4V DC (quick charging voltage)

Absorption Mode (Nominal Voltage)

13.6V DC (nominal voltage)

Float Mode (Trickle Charge Voltage)

13.2V DC (trickle charge voltage)

AC Circuits (twin breakers)

4 (Main and 3 branch circuits)

DC Circuits (Quantity)

4 (one battery circuit)

Case Material


Case Color

Black, Brown

Over Current


Over Temperature


Over Voltage


Reverse Polarity


Cooling System



10 7/16" x 6 1/8" x 3 3/4"


4.75 lbs.


FCC Class B compliant
